Descriere

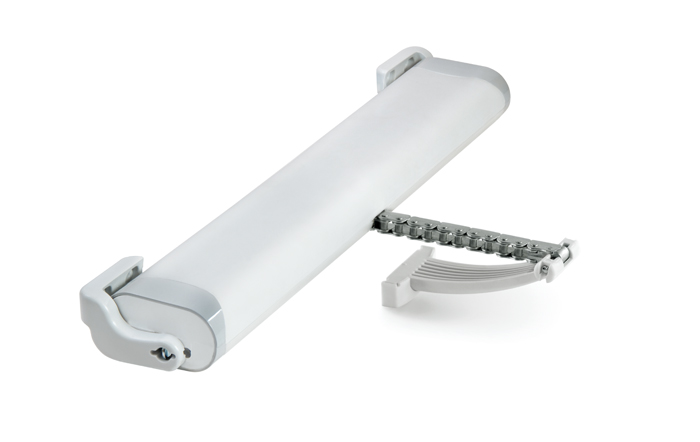

ACTUATOR/MOTOR VENTILATIE LIWIN L35 – 24V
Motor electric cu lant pentru deschiderea automata a ferestrelor din lemn, PVC si aluminiu.
Caracteristici:
Forta: 350N
Cursa lant: 50–100–150–200–250–300–350–400–420mm
Alimentare: 24V
Dimensiuni: 390x38x73mm
Temperatura de operare: -5⁰/ + 50°
Culori: alb si negru
| ARTICLE | L 35 24V BASIC |
| VOLTAGE | 24 V |
| POWER CONSUMPTION | 28 W |
| MAX. ABSORPTION | 1 A |
| MAX. THRUST | 350 N |
| OPERATION | S2- 4 MIN |
| PROTECTION DEGREE(IP) | IP 44 |
| WORKING TEMPERATURE | -5⁰/+50⁰ C |
| CAN BE OPERATED IN PARALLEL | MAX. 30 ACTUATORS |
| STROKE | 50-100-150-200-250-300-350-400-420 MM |
| SPEED | 18 MM/SEC |
| WEIGHT | 1.22 KG |
